Adaptable brilliance, and seamless design redefine elegance and visual radiance.
Adaptable brilliance, and seamless design redefine elegance and visual radiance.

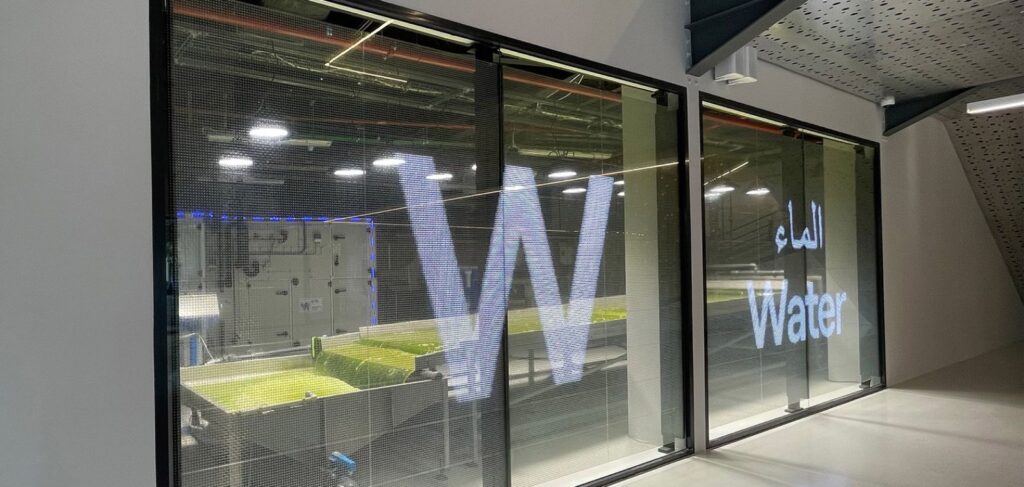

MicroMESH offers remarkable transparency, seamlessly blending with your surroundings for clear views and effective communication.
With up to 4,000 nits in brightness, MicroMESH Series outshines the ordinary with brilliance that goes beyond brightness, redefining the standard for visual radiance inspired by industry excellence.

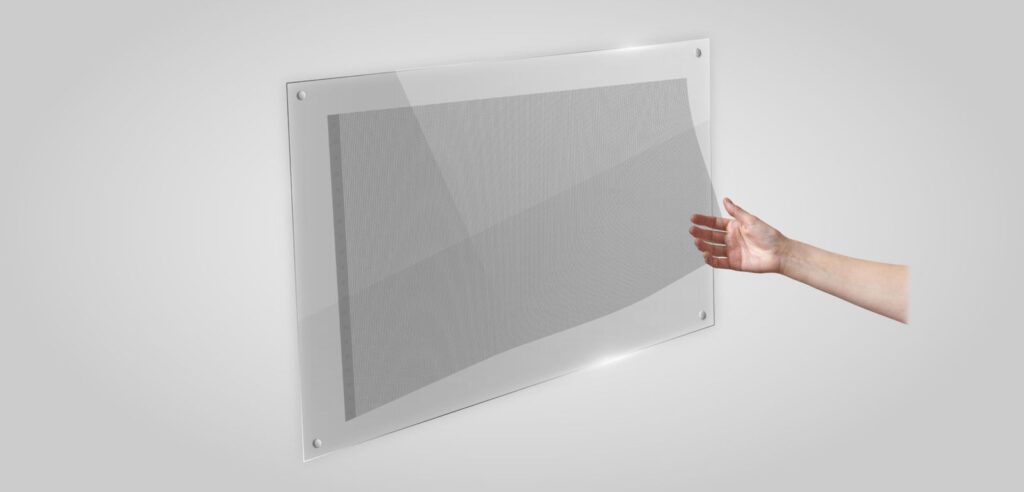

Experience a space-saving marvel with adhesive front and back, ensuring a simple, lightweight, and elegant frame design.
Minimum
1.9mm
Pixel Pitch
Up to
Brightness
Up to
60%
Transparency
| Model | Pixel Pitch (mm) | Brightness (nits) | Transparency (%) | Cabinet Dimension (mm) | Resolution (pixel/m²) | Refresh Rate (Hz) | Viewing Angle (H/V) | Viewing Distance (ft) | Working Temperature (°C/°F) | Average Power Consumption (W/m²) | Maximum Power Consumption (W/m²) | IP Rating | Service |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W1.9x3.9 | 1.9 x 3.9 | 3,000 | >30% | 500 x 1000mm or 1000 x 1000mm | 134,656 | 1920 ~ 3840 | 160°/160° | >3 | -10 ~ 60 °C / 14 ~ 140 °F | 580 | 800 | IP22 | Front / Rear Service |
| W3.9 | 3.91 x 3.91 | 3,000 / 5,000 | >40% | 500 x 1000mm or 1000 x 1000mm | 65,536 | 1920 ~ 3840 | 160°/160° | >10 | -10 ~ 60 °C / 14 ~ 140 °F | 530 | 400 / 800 | IP22 | Front / Rear Service |
| W3.9-2 | 3.91 x 7.81 | 3,000 / 5,500 | >60% | 500 x 1000mm or 1000 x 1000mm | 32,768 | 1920 ~ 3840 | 160°/160° | >10 | -10 ~ 60 °C / 14 ~ 140 °F | 530 | 400 / 800 | IP22 | Front / Rear Service |
| W5.2 | 5.2 x 5.2 | 3,000 / 6,000 | >50% | 500 x 1000mm or 1000 x 1000mm | 36,864 | 1920 ~ 3840 | 160°/160° | >16 | -10 ~ 60 °C / 14 ~ 140 °F | 510 | 400 / 800 | IP22 | Front / Rear Service |
| W7.8 | 7.81 x 7.81 | 3,500 / 10,000 | >60% | 500 x 1000mm or 1000 x 1000mm | 16,384 | 1920 ~ 3840 | 160°/160° | >26 | -10 ~ 60 °C / 14 ~ 140 °F | 440 | 400 / 800 | IP22 | Front / Rear Service |
| W10 | 10.4 x 10.4 | 3,000 | >70% | 500 x 1000mm or 1000 x 1000mm | 9,216 | 1920 ~ 3840 | 160°/160° | >42 | -10 ~ 60 °C / 14 ~ 140 °F | 200 | 800 | IP22 | Front / Rear Service |
