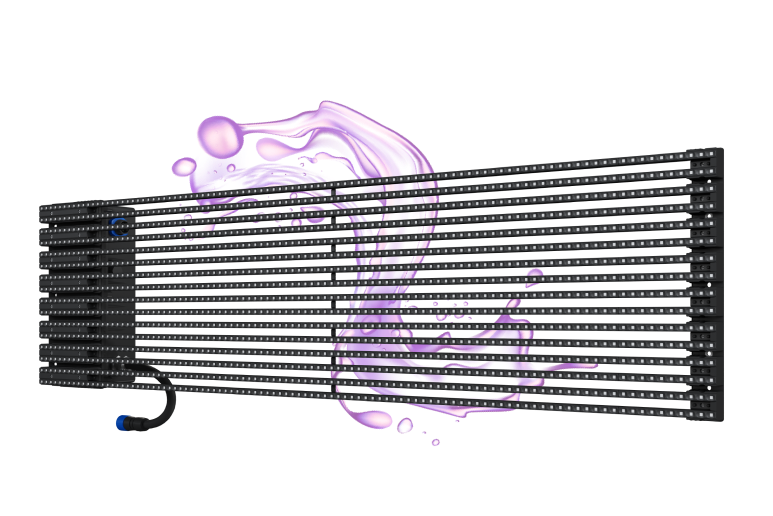

Versatile, transparent, and waterproof, MESH Series redefines LED displays.
Versatile, transparent, and waterproof, MESH Series redefines LED displays.

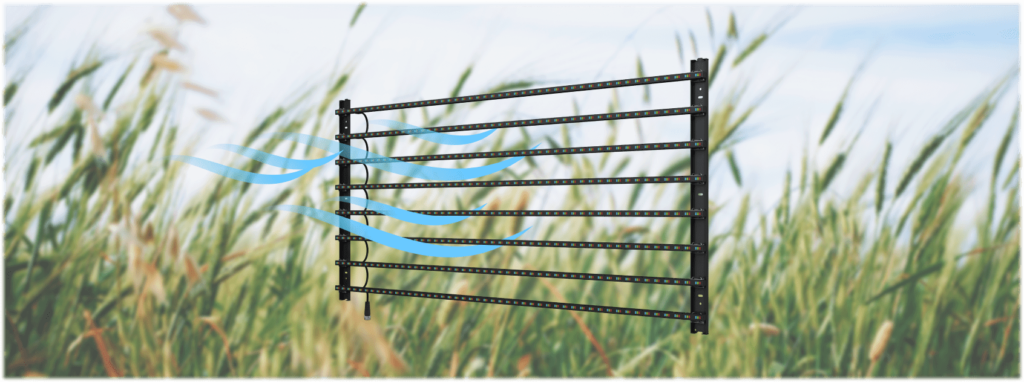

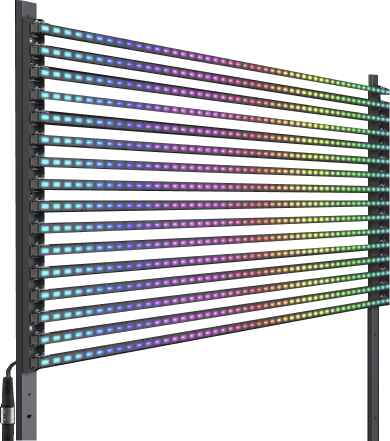

The led louver design makes it less affected by the winds

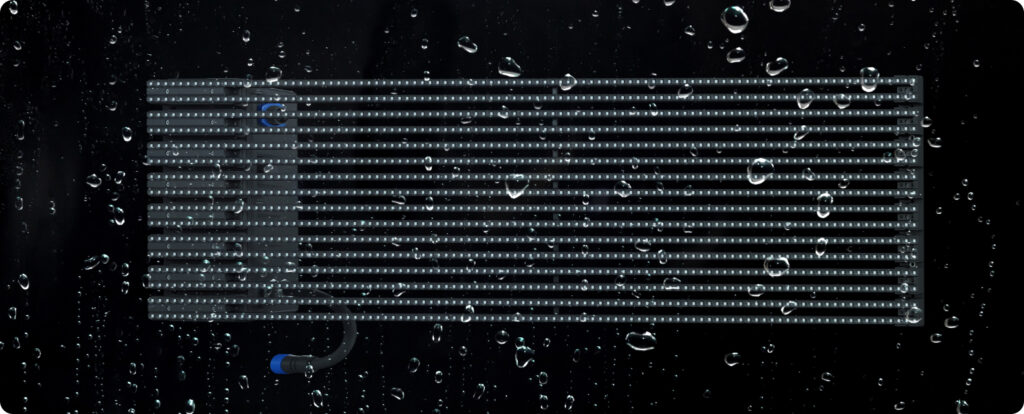

Our products offer full protection with IP67 rating, high-temperature resistance, and robust resistance to rain, snow, and strong winds, ensuring they stand up to even the harshest weather conditions.

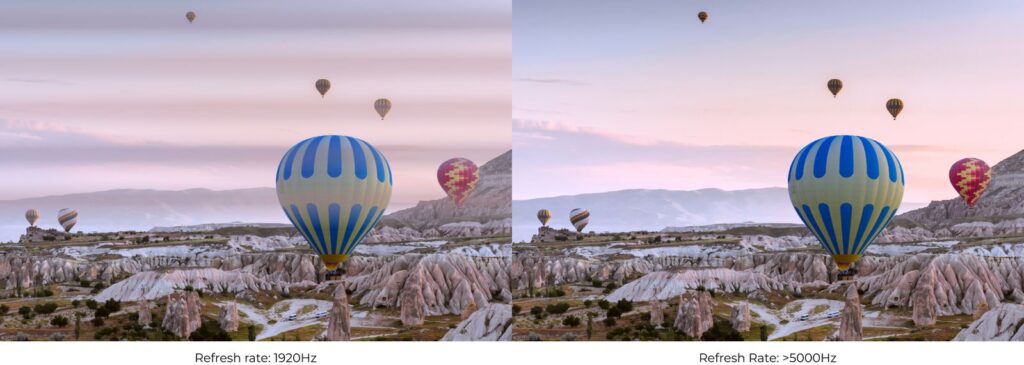

With a refresh rate of over 5000Hz, our displays excel in providing unparalleled visual stability. The higher the refresh rate, the smoother and more stable the image, reducing flickering and shaking for an exceptional viewing experience.
Minimum
1.9mm
Pixel Pitch
Up to
10,000 nits
Brightness
Up to
93%
Transparency

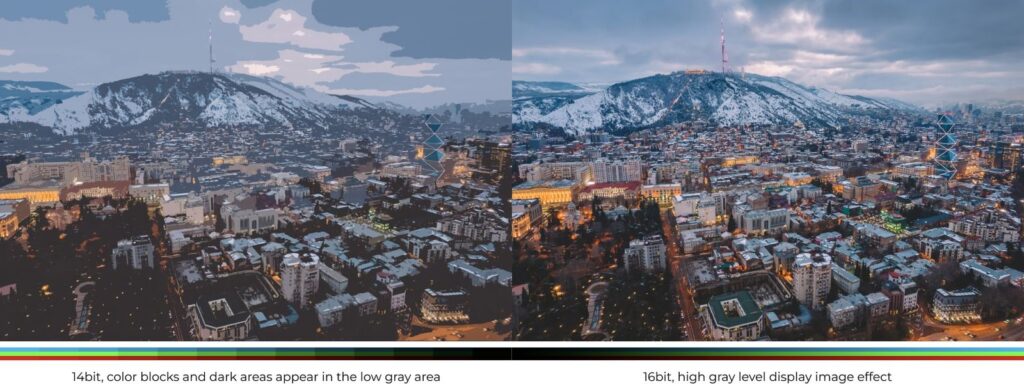

Our displays guarantee outstanding 16-bit quality, maintaining crystal-clear image and video content regardless of the brightness setting.

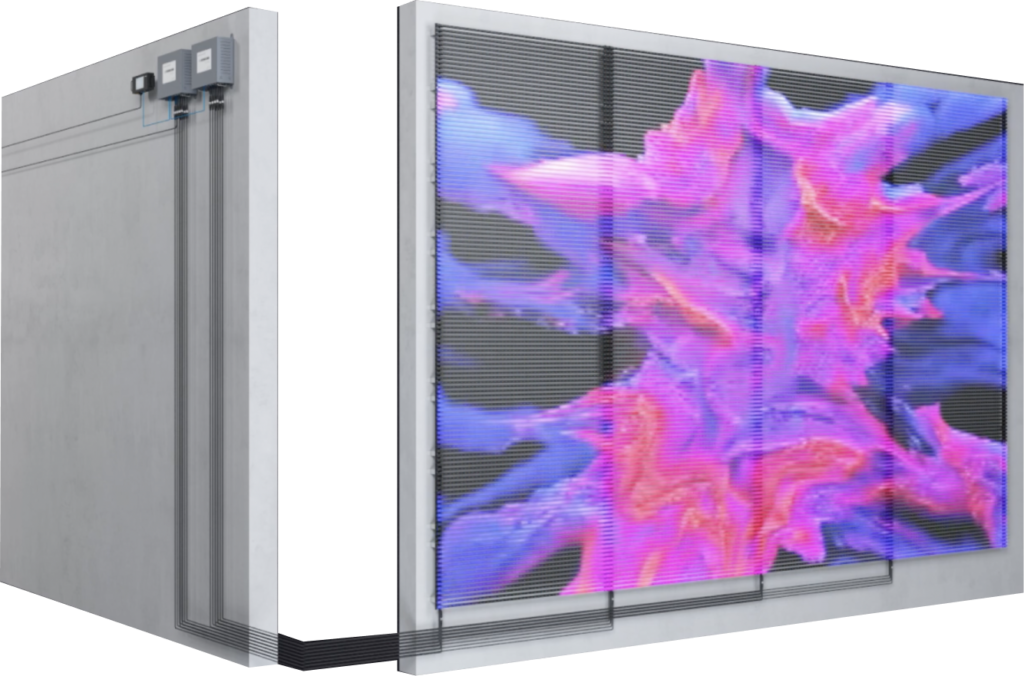

Our MESH series features a distinct design with separate power and control components, minimizing the curtain wall load and enabling a lighter system. Easy access enhances maintenance efficiency, ensuring long-term reliability with minimal disruptions.
Our unit structure and patented design enable easy installation and tool-free maintenance by a single person in just one minute, making setup and upkeep a breeze.
Our MESH series boasts a wide color gamut, ensuring true color fidelity by encompassing an extensive range of producible colors within our technical system.
Our MESH series excels in extreme temperatures, with stable operation in conditions as cold as -40°C and as hot as +70°C.

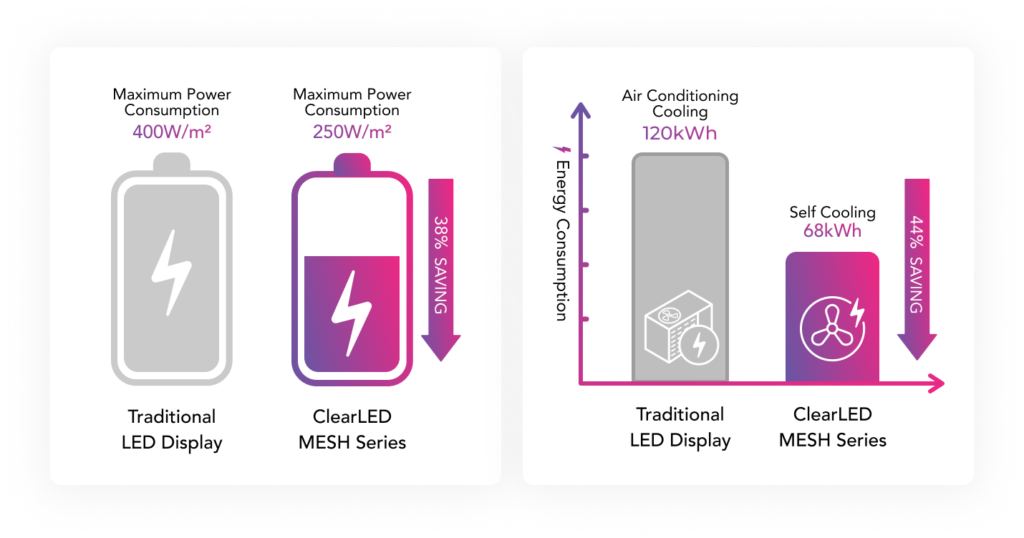

Our MESH series consumes 250W/㎡ maximum, eliminating the need for additional cooling systems. The transparent LED Louver screen offers self-cooling, saving on both energy and maintenance costs.
| Model | Pixel Pitch (mm) | Brightness (nits) | Transparency (%) | Cabinet Dimension (mm) | Resolution (pixel/m²) | Refresh Rate (Hz) | Viewing Angle (H/V) | Viewing Distance (ft) | Working Temperature (°C/°F) | Average Power Consumption (W/m²) | Maximum Power Consumption (W/m²) | IP Rating | Service |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W1.9x3.9 | 1.9 x 3.9 | 3,000 | >30% | 500 x 1000mm or 1000 x 1000mm | 134,656 | 1920 ~ 3840 | 160°/160° | >3 | -10 ~ 60 °C / 14 ~ 140 °F | 580 | 800 | IP22 | Front / Rear Service |
| W3.9 | 3.91 x 3.91 | 3,000 / 5,000 | >40% | 500 x 1000mm or 1000 x 1000mm | 65,536 | 1920 ~ 3840 | 160°/160° | >10 | -10 ~ 60 °C / 14 ~ 140 °F | 530 | 400 / 800 | IP22 | Front / Rear Service |
| W3.9-2 | 3.91 x 7.81 | 3,000 / 5,500 | >60% | 500 x 1000mm or 1000 x 1000mm | 32,768 | 1920 ~ 3840 | 160°/160° | >10 | -10 ~ 60 °C / 14 ~ 140 °F | 530 | 400 / 800 | IP22 | Front / Rear Service |
| W5.2 | 5.2 x 5.2 | 3,000 / 6,000 | >50% | 500 x 1000mm or 1000 x 1000mm | 36,864 | 1920 ~ 3840 | 160°/160° | >16 | -10 ~ 60 °C / 14 ~ 140 °F | 510 | 400 / 800 | IP22 | Front / Rear Service |
| W7.8 | 7.81 x 7.81 | 3,500 / 10,000 | >60% | 500 x 1000mm or 1000 x 1000mm | 16,384 | 1920 ~ 3840 | 160°/160° | >26 | -10 ~ 60 °C / 14 ~ 140 °F | 440 | 400 / 800 | IP22 | Front / Rear Service |
| W10 | 10.4 x 10.4 | 3,000 | >70% | 500 x 1000mm or 1000 x 1000mm | 9,216 | 1920 ~ 3840 | 160°/160° | >42 | -10 ~ 60 °C / 14 ~ 140 °F | 200 | 800 | IP22 | Front / Rear Service |
| Model | Pixel Pitch (mm) | Brightness (nits) | Transparency (%) | Cabinet Dimension (mm) | Resolution (pixel/panel) | Refresh Rate (Hz) | Viewing Angle | Viewing Distance (ft) | Working Temperature (°C/°F) | Average Power Consumption (W/m²) | Maximum Power Consumption (W/m²) | IP Rating | Service |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WO3.9 | 3.9x3.9 | 5500 | 45% | 500 x 1000 | 256 x 64 | 1,920 ~ 3,840 | 150°/150° | >10 | -20℃ - 50℃ / -4 ~122 °F | 360 | 800 | IP65 | Rear Service |
| WO3.9-2 | 3.9x7.8 | 5500 | 55% | 500 x 1000 | 256 x 64 | 1,920 ~ 3,840 | 150°/150° | >10 | -20℃ - 50℃ / -4 ~122 °F | 360 | 800 | IP65 | Rear Service |
| WO5.2 | 5.2x10.4 | 5500 | 60% | 500 x 1000 | 192 x 48 | 1,920 ~ 3,840 | 150°/150° | >16 | -20℃ - 50℃ / -4 ~122 °F | 360 | 800 | IP65 | Rear Service |
| WO7.8 | 7.8 x 7.8 | 5500 | 65% | 500 x 1000 | 192 x 48 | 1,920 ~ 3,840 | 150°/150° | >26 | -20℃ - 50℃ / -4 ~122 °F | 360 | 800 | IP65 | Rear Service |
| WO10.4 | 10.4x10.4 | 5500 | 70% | 500 x 1000 | 96 x 48 | 1,920 ~ 3,840 | 150°/150° | >42 | -20℃ - 50℃ / -4 ~122 °F | 360 | 800 | IP65 | Rear Service |
